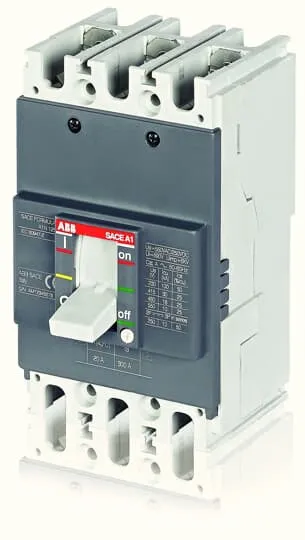

ABB Formula MCCB 125 A, 3 Pole, 36 kA, Fixed O/L & Fixed S/C Settings, Thermal Magnetic Trip Unit TMF (A1N 125 TMF 100-1000 3p F F)
The ABB 1SDA066731R1 is a compact, 3-pole, 100A Molded Case Circuit Breaker (MCCB) from the SACE Formula A1N 125 series. Designed for simple, tamper-proof distribution network protection, it features a fixed thermomagnetic release (TMF) with a preset 100A thermal overload and 1000A short-circuit trip threshold.
Product Specification :
- Number of Poles: 3 Poles
- Rated Current / Frame Size: 100 A / 125 A Frame
- Breaking Capacity: 36 kA at 380/415V AC
- Rated Operational Voltage: 415V AC
- Protection Release: Non-adjustable Thermomagnetic (TMF 100-1000)
- Terminal Type: Fixed Front Terminals (F F)
- Dimensions: 130 mm (H) x 76.2 mm (W) x 60 mm (D)
₹ 0.00
₹ 0.00
(Tax excluded)
