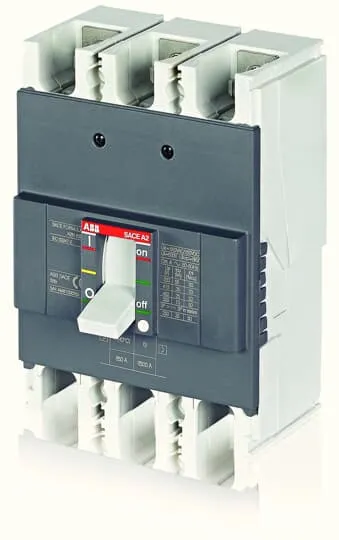

ABB Formula MCCB 250 A, 3 Pole, 36 kA, Fixed O/L & Fixed S/C Settings, TMF, A2N 250 TMF 250-2500 3p F F
The ABB 1SDA066784R1 is a 3-pole, 200A Molded Case Circuit Breaker (MCCB) from the SACE Formula A2N 250 series. Engineered for sub-distribution and industrial 3-phase line protection, it utilizes a fixed thermomagnetic release (TMF) with a tamper-proof 200A thermal overload and a 2000A instantaneous short-circuit trip threshold.
Product Specification:
- Number of Poles: 3 Poles
- Rated Current / Frame Size: 200 A / 250 A Frame
- Breaking Capacity : 36 kA at 380/415V AC
- Rated Operational Voltage : 550V AC / 250V DC
- Protection Release: Non-adjustable Thermomagnetic (TMF 200-2000)
- Terminal Type: Fixed Front Terminals (F F)
- Dimensions: 150 mm (H) x 105 mm (W) x 60 mm (D)
