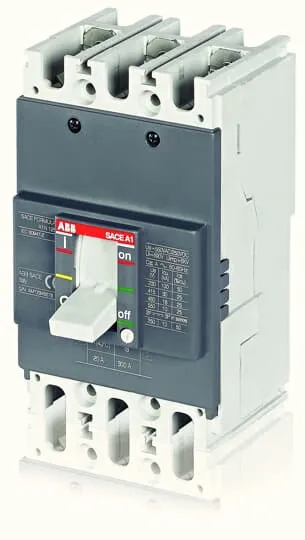

ABB Formula MCCB 63 A, 3 Pole, 10 kA, Fixed O/L & Fixed S/C Settings, Thermal Magnetic Trip Unit, 1SDA068768R1
The ABB 1SDA068768R1 is a 3-pole, 63A Molded Case Circuit Breaker (MCCB) from the SACE Formula A1A 125 series. Designed for direct overcurrent and short-circuit protection in low-voltage electrical distribution networks, it features a fixed thermomagnetic release (TMF) with a preset 63A thermal overload and 630A instantaneous trip threshold.
Product Specification :
- Number of Poles: 3 Poles
- Rated Current / Frame Size: 63 A / 125 A Frame
- Breaking Capacity : 10 kA at 380/415V AC
- Rated Operational Voltage : 550V AC / 250V DC
- Protection Release: Non-adjustable Thermomagnetic (TMF 63-630)
- Terminal Type: Fixed Front Terminals (F F)
- Dimensions: 130 mm (H) x 76.2 mm (W) x 60 mm (D)
