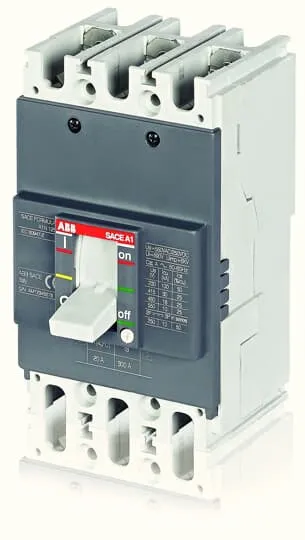

ABB Formula MCCB 63 A, 3 Pole, 10 kA, Fixed O/L & Fixed S/C Settings,Thermal Magnetic Trip Unit,1SDA068768R1
The ABB 1SDA068768R1 is a 3-pole, 63A Molded Case Circuit Breaker (MCCB) from the SACE Formula A1A 125 series. Designed for direct overcurrent and fault protection in lower-demand electrical circuits, it relies on a fixed thermomagnetic release (TMF) calibrated with a tamper-proof 63A thermal overload threshold and a 630A instantaneous short-circuit trip.
Product Specification:
- Number of Poles: 3 Poles
- Rated Current / Frame Size: 63 A / 125 A Frame
- Breaking Capacity : 10 kA at 380/415V AC
- Rated Operational Voltage : 415V AC (tested up to 550V AC max)
- Protection Release: Non-adjustable Thermomagnetic (TMF 63-630)
- Terminal Type: Fixed Front Terminals (F F)
- Dimensions: 130 mm (H) x 76.2 mm (W) x 60 mm (D)
