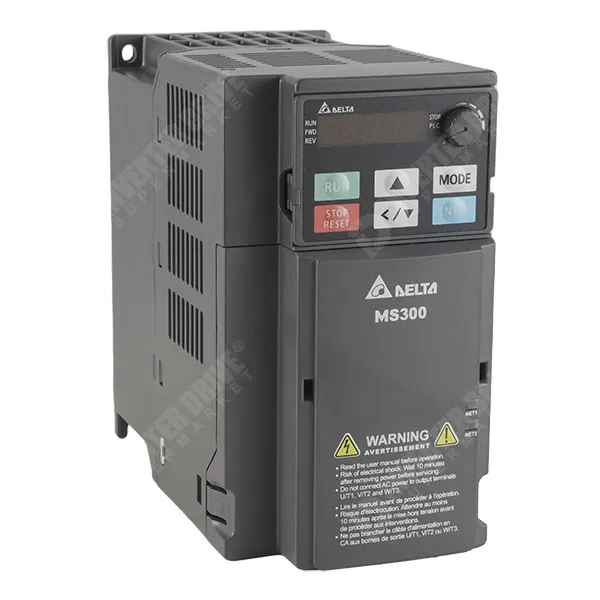

Delta MS Series 3 HP 2.2kW 3 Phase VFD Drive VFD5A5MS43ANSAA

Delta MS300 Basic Compact Series AC Inverter for 2.2kW (3HP) 400V 3ph motor to 5,5A at high overload or 2.2kW (3HP) to 6,1A when Fan/Pump rated. Operates in VxF or Sensorless Vector and converts fixed frequency Three Phase 400V input to variable frequency Three Phase 400V to control a standard AC Induction Motor or Permanent Magnet Motor ( IPM - Interior permanent magnet and SPM - surface mounted permanent magnet).

Dimensions: Frame C1; 87mm Wide x 152mm Deep x 157mm High

Enclosure Rating: IP20

Weight: 1kg.

2.2kW, 5.5A with 150% for 60 seconds (Heavy Duty, HD), 200% of rated output current for 3 seconds. - Default Rating

2.2kW, 6.1A with 120% for 60 seconds. (Normal Duty, ND), 150% of rated output current for 3 seconds.

Speed Control Range: 0-599Hz. +/- 0.1%.

Speed Ratio: 50:1 (SVC control for Induction Motor): 20:1 (SVC control for PM Motor).

Braking (DBr): Built-in braking transistor for Dynamic Braking if required. Min Resistor 108 Ohms, 10% Maximum braking duty.

Removable Operator Keypad with potentiometer (See linked items below for alternative remote keypad and cable)

2 Analogue Inputs (0-10Vdc, 0-20mA or 4-20mA), 7 Programmable Digital Inputs (1 Programmable as Pulse Input), 1 Analogue Output, 2 Digital Output (NPN Only) 1 Relay set of Changeover contacts (Resistive Load 3A/250VAC -5A/30VDC,  Inductive Load 1.2A/250VAC -2A/30VDC)

Twin Wire Connections for RS485 Modbus serial communications. RJ45 Connection for external Keypad.

Safe Torque Off (STO): Functional to SIL2 (EN61800), EN 60204-1 Category 0, EN 62061 SIL CL 2, SO 13849-1:2015 Category 3 PL d.

Input Current: 5,5A (HD), 6,1A (ND).

Input Voltage: Three phase AC 380V–480V (-15 %~+10 %), 50/60 Hz.

EMC Filter: Unfiltered

Cubicle mount only. Pollution degree 2.

Rated at IP20

Ambient Operating temperature: to 50°C (40°C when units mounted side-by-side)

Heat Loss at High Overload: 83.4W total at max output

Ventilation space in front [not specified], above: 50mm, below: 50mm, at sides 30mm.

Mounting via 4 x M5 bolts (not supplied) at rear on 73mm x 144.5mm centres. (Optional DIN-Rail mounting available - see linked products below).

Part Number: VFD5A5MS43ANSAA
