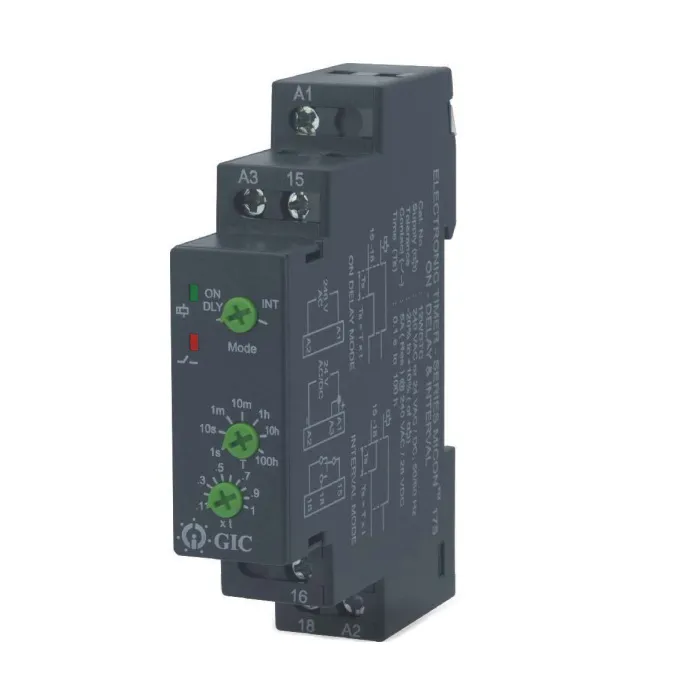

GIC 12ODT4 Analogue Timer, Micon 175 ,On-Delay
The GIC 12ODT4 is a 17.5mm ultra-compact analogue electronic ON Delay timer from the Micon 175 series. Unlike its sibling model (the 11ODT4 which runs on 110 VAC), the 12ODT4 variant operates on an integrated dual voltage configuration supporting a higher primary voltage of 240 VAC or 24 VAC/DC. It is widely applied in electrical control panels to manage delayed startup sequences for motors, pumps, compressors, and industrial machinery
Product Specification:
- Timing Function: ON-Delay (
- Integrated Supply Voltage: 240 VAC / 24 VAC/DC (at 50/60 Hz frequency).
- Selectable Time Range: 0.3 seconds up to 30 hours.
- Output Configuration: 1 Changeover Relay
- Contact Rating: Rated up to 5A at 240 VAC / 28 VDC
- Mounting & Dimensions: Standard 35mm symmetric DIN Rail or base mounting. Dimensions measure 17.5 x 90 x 58.5 mm.
- Protection & Safety: Enclosure rated to IP40 with IP20
- Indicators: Power status and internal Relay state
₹ 825.00
₹ 825.00
(Tax excluded)
