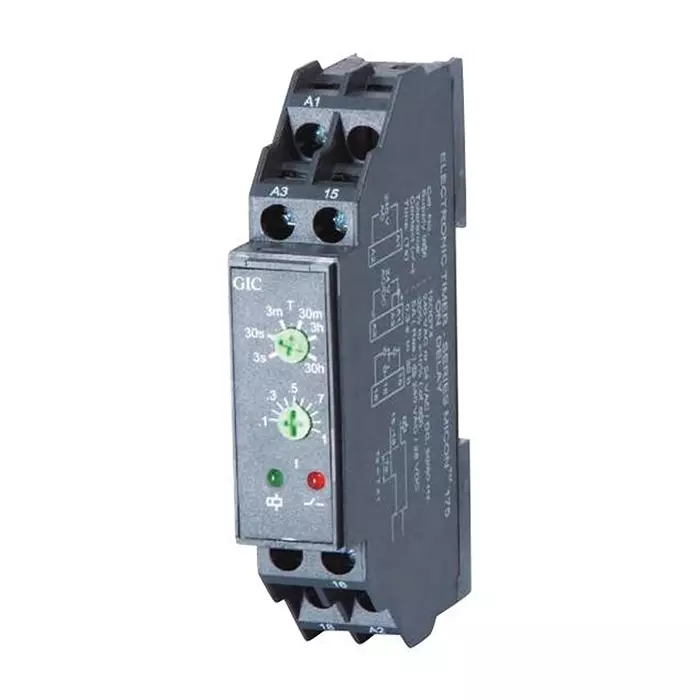

GIC 12WDTC Micon 175 On Delay Timer, 10s-1h Delay Range
The GIC 12WDTC is a 17.5mm wide dual-functional analogue electronic timer from the Micon 175 series . It supports both ON-Delay and Interval timing modes within a single module.
Product Description:
- Timing Modes: ON-Delay and Interval.
- Supply Voltage : 240 VAC / 24 VAC/DC (at 50/60 Hz frequency).
- Time Range Array: Configurable window scaling from 0.1 seconds to 30 hours
- Output Configuration: 1 Changeover Relay (1 C/O, SPDT profile).
- Switching Current Rating: Nominal resistive load capability of 5A at 240 VAC / 28 VDC.
- Enclosure : 17.5mm ultra-slim structure, designed for space efficiency
- Installation Profile: Dual-mount flexibility allowing 35mm symmetrical DIN Rail mounting or direct base surface
- Indication: Dual-LED forward panel indicating power supply and current active relay output state
₹ 1,134.56
₹ 1,134.56
(Tax excluded)
