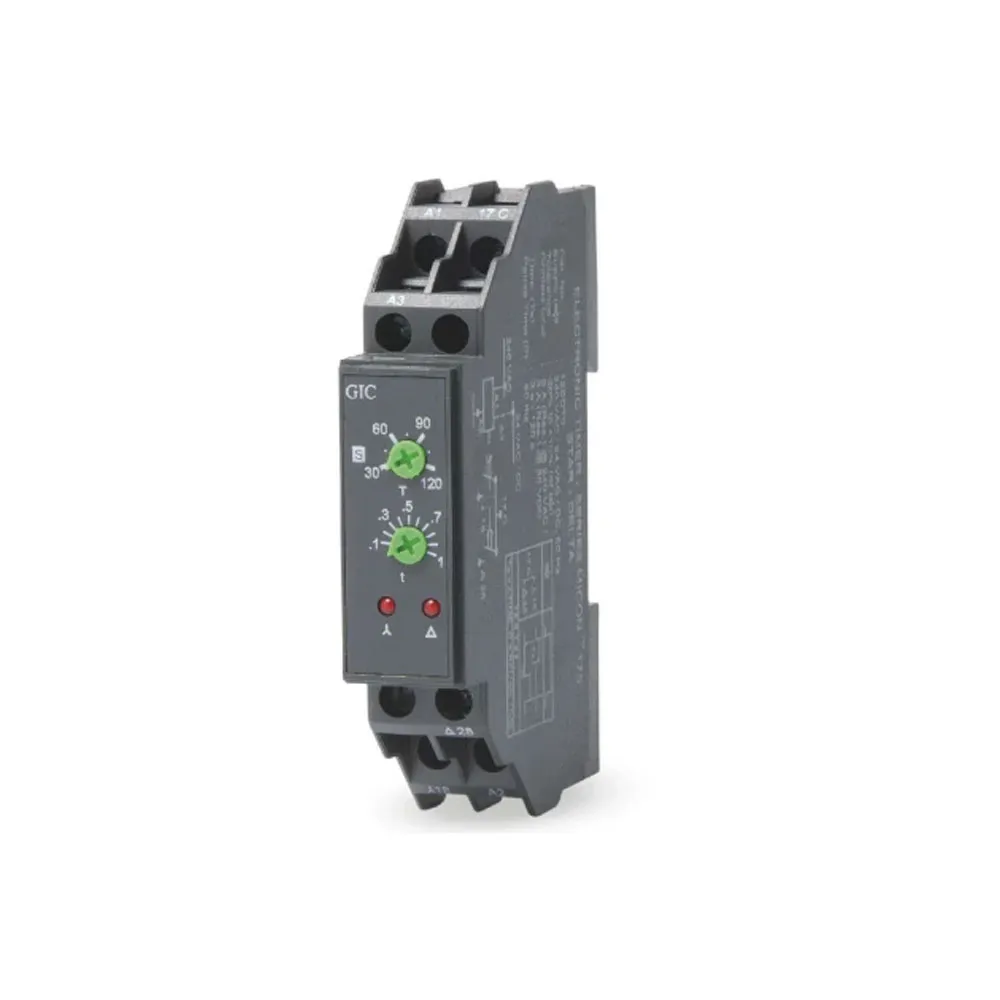

GIC 14SDT1S Make Micon 175 Star Delta Timer 240-415VAC, 60ms paus
The GIC 14SDT1S is a compact 17.5mm wide analogue electronic Star Delta timer, this specialized relay controls the starting sequence of three-phase induction motors, smoothly transitioning the motor winding connection from a Star configuration to a Delta configuration to reduce initial start-up inrush current. It is primarily integrated into industrial motor starter panels, pump controls, and automation machinery.
Product Description:
- Timing Function: Star-Delta Timer
- Supply Voltage : Multi-voltage compatibility supporting 240V AC to 415V AC (50/60 Hz frequency).
- Time Range Array: 3 seconds to 30 seconds
- Output / Contact Configuration: 2 Changeover Contacts configured as 1 C/O for Star + 1 C/O for Delta.
- Switching Current Capacity: Nominal rating of 5A resistive load at 240V AC.
- Mounting Type: standard 35mm symmetric DIN Rails or panel backplate configurations.
- LED Troubleshooting: Integrated front panel indicators providing real-time data on active Power line delivery and Star/Delta terminal states
₹ 1,453.00
₹ 1,453.00
(Tax excluded)
