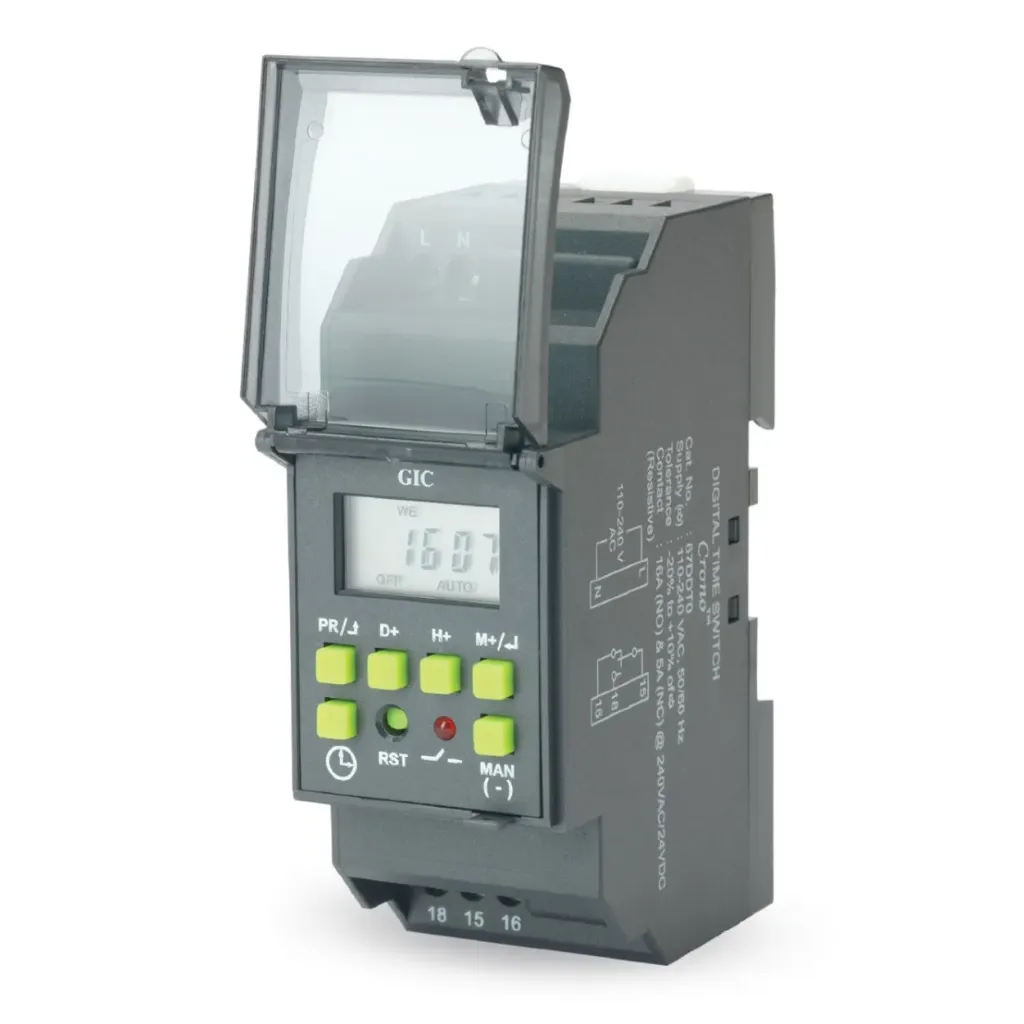

GIC 67DDT0 Digital Time Switch 85-265VAC 1 C/O

Product Description:

• Brand : GIC
• Model No : 67DDT0
• Type : Time Switches
• Supply Variation : 20% to +10%
• Frequency :  50 / 60 Hz
• Power Consumption : 4 VA
• Contact Rating : 16A (For ‘NO’) & 5A (For ‘NC’) @ 240 VAC / 24 VDC (Resistive)Inductive (cos ø = 0.6)6 A @ 250 VAC
• Electrical Life : 3 x 10⁴
• Storage Temperature : 10°C to + 60°C
• Operating Temperature : 10°C to + 55°C
• Humidity : 95 % (Rh)
• LED Indication Red LED : Relay ON
• Number of Programs : 25 ON / OFF Programs
• Power Reserve : 6 years
• Utilization Category Dc 13 : Rated Voltages (Ue) 24 / 125 / 250 V Rated Current (Ie)2.0 / 0.22 / 0.11 A
• Utilization Category Ac 15 : Rated Voltages (Ue) 120 / 240 VRated Current (Ie)3 / 1.5 A
• Enclosure : Flame Retardant
• Mounting Type : DIN rail
• Mechanical Life : 5 x 10⁴
• No of Operating Modes : 5
• Display : LCD with Backlight
• Min Switching Time : 1 Min
• Pulse Duration : N / A
• Description of Modes : Auto / On Auto / Auto Off / On / Off
• Clock Accuracy : ± 2 s / day max. over the Operating Temperature range
• Weight : 0.110 Kg
