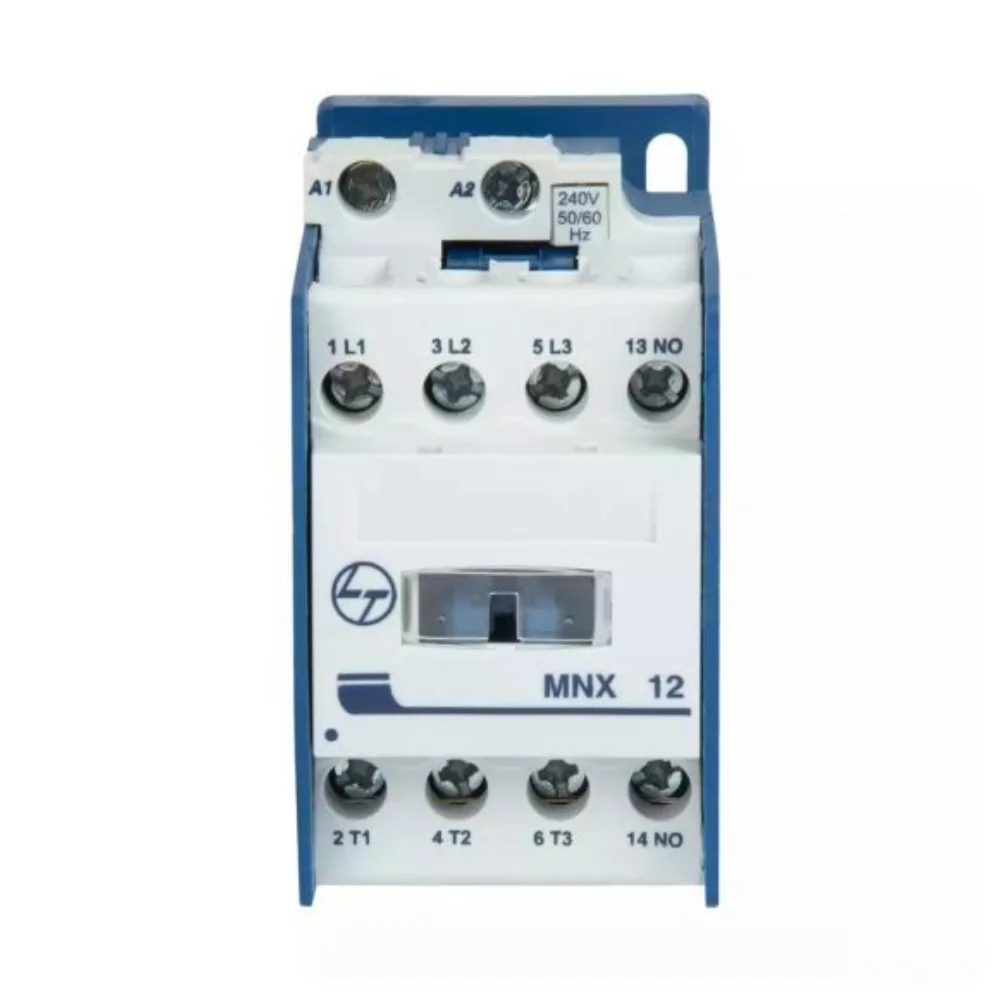

Lauritz Knudsen (Formerly L&T Switchgear) MNX 12 Amp 3 pole 220V AC Power Contactor CS94108

The CS94108 is an industrial power contactor manufactured by Lauritz Knudsen (formerly the electrical and automation division of L&T / Larsen & Toubro). It is a compact electromechanical switch used to safely complete or interrupt high-current 3-phase circuits via a low-power control circuit.

Product Specification:

Model: MNX 12

Frame Size: Frame 1

Number of Poles: 3 Main Power Poles (Normally Open)

Current Rating (AC-3): 12 Amps (optimized for switching small 3-phase induction motors up to 5.5 kW at 415V)

Current Rating (AC-1): 30 Amps (for resistive loads like industrial heaters)

Auxiliary Contact: 1 NO (Normally Open) built-in contact for control loop signaling or status feedback

Key Features: Features a click-fit type construction for easy DIN-rail mounting, finger-proof terminals up to 40A, and front-facing ON/OFF status indication.

Standards: Conforms to IS/IEC 60947-4-1 industrial safety standards.

Depending on your panel's exact control loop requirement, the base unit is paired with different control coil variants (indicated by suffix letters like CS94108AOOO for 110V, CS94108BOOO for 240V, or CS94108DOOO for 415V AC
