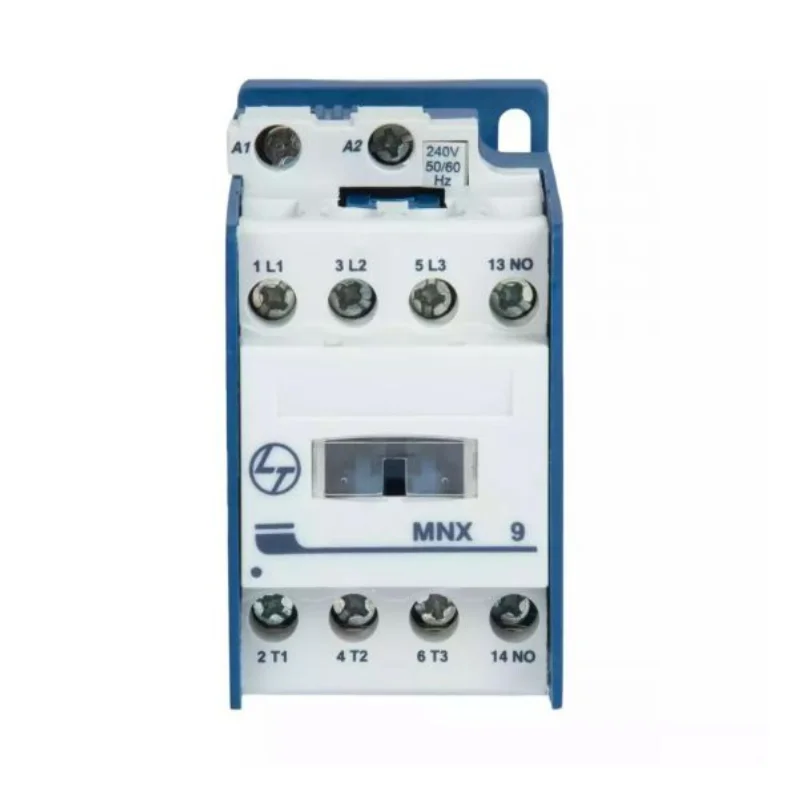

Lauritz Knudsen (Formerly L&T Switchgear) MNX 9 Amp 3 Pole 220V AC Power Contactor CS94106
The CS94106 is a low-capacity industrial power contactor manufactured by Lauritz Knudsen (the electrical and automation switchgear division of L&T / Larsen & Toubro). It functions as a compact electromechanical switch used to safely open and close electrical power lines supplying small machinery via a low-power control circuit.
Poles: 3 NO (Normally Open) main power poles for 3-phase systems.
Current Rating (AC-3): 9 Amps (ideal for switching small 3-phase induction motors up to 3.7 kW / 5 HP at 415V).
Current Rating (AC-1): 25 Amps (for resistive heating and non-inductive networks).
Auxiliary Contact: 1 NO integrated contact for control circuit status feedback.
Compliance: CE marked, UL listed; certified to IS/IEC 60947-4-1 industrial safety standards.
Product Features:
- Model: MNX 9
- Frame Size: Frame 1 (Fr 1)
- Number of Poles: 3 Main Power Poles (Normally Open)
- Current Rating (AC-3): 9 Amps (ideal for switching small 3-phase induction motors up to 3.7 kW / 5 HP at 415V)
- Current Rating (AC-1): 25 Amps (for non-inductive or resistive loads like small heating elements)
- Auxiliary Contact: 1 NO (Normally Open) built-in contact for feedback signaling (Note: Its sister model, CS94107, features a 1 NC contact instead).
- Design Features: Built with a space-saving click-fit type construction for simple DIN-rail mounting and finger-proof terminals up to 40A for enhanced user safety.
- Compliance: CE Marked, UL Listed, and compliant with IS/IEC 60947-4-1 industrial safety standards.
₹ 0.00
₹ 0.00
(Tax excluded) - Get Latest Price
