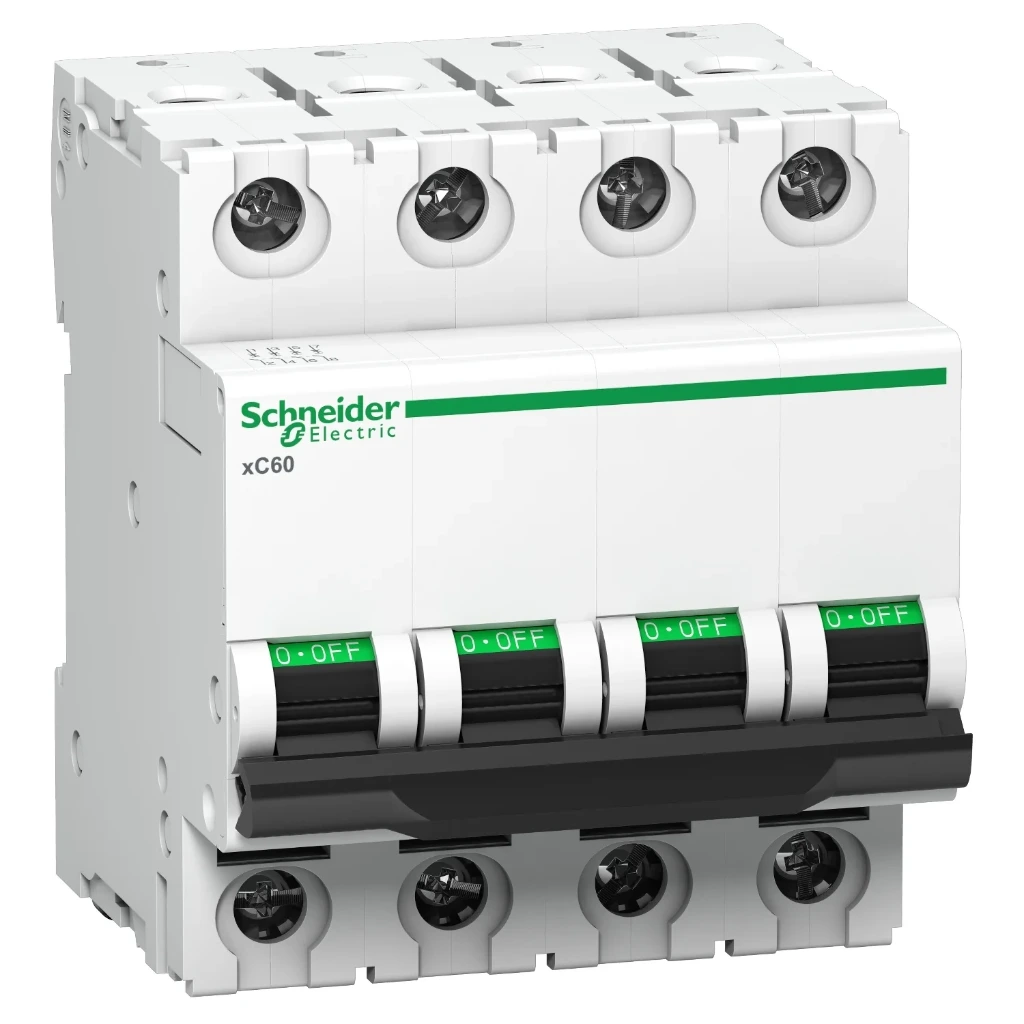

MCB-Schneider Electric Acti 9 63 Amp 4 Pole 10 kA B-Curve A9N4P63B
The Schneider Electric Acti 9 A9N4P63B is a 63A, four-pole miniature circuit breaker designed for three-phase systems requiring rapid fault disconnection. Featuring a fast-acting B-curve profile and a 10 kA breaking capacity, it provides reliable primary protection for residential, commercial, and solar distribution networks.
Product Specifications
- Brand/Series: Schneider Electric Acti9 (xC60)
- Model Code: A9N4P63B (Variants include A9N4P63BIN / A9N4P63BGN)
- Current Rating: 63 Ampere
- Number of Poles: 4 Pole / Four Pole (FP)
- Breaking Capacity: 10 kA (10,000 Amps), which allows it to handle large short-circuit currents safely.
- Tripping Curve: B-Curve (Fast-acting protection for low-surge environments)
- Standards Compliance: Conforms to both residential (EN/IEC 60898-1) and industrial (EN/IEC 60947-2) global safety standards.
- Core Safety Features: Equipped with VisiSafe positive contact indication (a green strip showing when contacts are physically open) and a VisiTrip indicator mechanism for instant fault identification.
