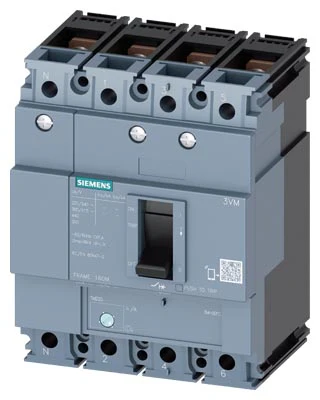

MCCB-Siemens 3VM11104GD420AA0- 100A 4P 36KA FTFM 415VAC- 50Hz
The Siemens 3VM1110-4GD42-0AA0 is a 4-pole, 100A Molded Case Circuit Breaker (MCCB) from the SENTRON 3VM1 series [3VM11104GD420AA0]. Engineered for efficient low-voltage power distribution and line protection, it features a fixed thermomagnetic trip unit (TM210) providing tamper-proof protection against electrical overloads and short circuits with a fully protected neutral pole.
Product Specification:
- Number of Poles / Configuration: 4 Poles / 100% Protected Neutral (4P 4d)
- Rated Current / Frame Size: 100 A / 160 A Frame
- Breaking Capacity (\(I_{cu}\)): 36 kA at 380/415V AC
- Rated Operational Voltage: 500V AC / 500V DC
- Protection Release: Non-adjustable Thermomagnetic (Fixed Overload & Fixed Short-Circuit) [3VM11104GD420AA0]
- Terminal Type: standard lug/busbar connection
- Dimensions: 130 mm (H) x 101.6 mm (W) x 70 mm (D)
