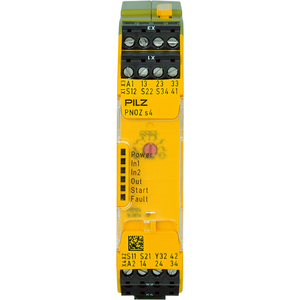

Pilz PNOZ s4 24VDC 3 n/o 1 n/c
The Pilz PNOZ s4 24VDC 3 n/o 1 n/c is a standalone, highly versatile safety relay from the Pilz PNOZsigma series. It is used to monitor emergency stop buttons, safety gates, and light curtains.
The PNOZ s4 supports both 1-channel and 2-channel wiring configurations and includes advanced features like short-circuit detection across contacts.
Product Specification:
Manufacturer / Series: Pilz PNOZsigma
Part Numbers:
- 750104 (Standard plug-in screw terminals)
- 751104 (PNOZ s4 C — Plug-in spring-loaded / push-in terminals)
Supply Voltage: 24V DC
Contact Outputs:
- 3 Normally Open (n/o) instantaneous safety contacts
- 1 Normally Closed (n/c) instantaneous auxiliary contact
- 1 Semiconductor (SC) diagnostic output
Width: 22.5 mm (wider than the s1 and s2 to accommodate dual-channel monitoring circuitry and extra contacts).
Safety Rating: Up to Cat 4, PL e (EN ISO 13849-1) and SIL CL 3 (IEC 62061)
