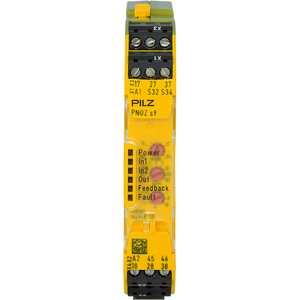

Pilz PNOZ s9 24VDC 3 n/o t 1 n/c t
The Pilz PNOZ s9 24VDC 3 n/o t 1 n/c t is a highly versatile safety relay from the PNOZsigma series that serves two main functions: it can act as a standalone safe timer relay or as a time-delayed contact expander module.
The abbreviation "t" next to the contacts indicates that all of its safety and auxiliary outputs are time-delayed. It is commonly used to safely time control machinery, such as adding a delayed release to an electrical safety gate interlock until a hazardous spin-down sequence finishes.
Key Specifications
- Manufacturer / Series: Pilz PNOZsigma
- Part Numbers:
- 750109 (Standard plug-in screw terminals)
- 751109 (PNOZ s9 C — Plug-in push-in / spring terminals)
- Supply Voltage: 24V DC
- Adjustable Time Range: 0.04 to 300 seconds
- Contact Outputs: Total of 4 delayed paths:
- 3 Normally Open (n/o t) time-delayed safety paths.
- 1 Normally Closed (n/c t) time-delayed auxiliary/diagnostic path.
Width: 17.5 mm (slender form factor to minimize DIN-rail usage).
Safety Rating: Up to Category 4, PL e (EN ISO 13849-1) and SIL CL 3 (IEC 62061)
