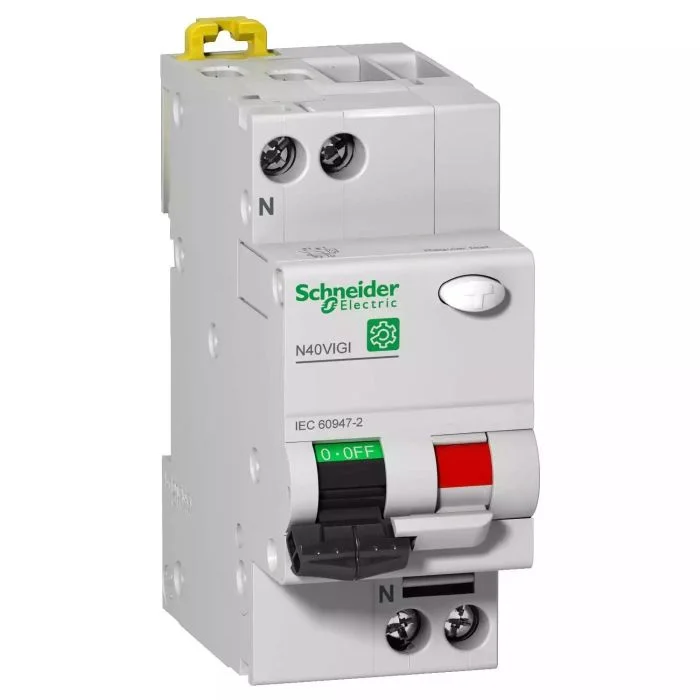

Schneider Electric MULTI 9 N40 VIGI C 6A 1PPN 30 MA AC 6000 - M9D11606

This Multi9 N40 Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 6A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icu rated short circuit breaking capacity is up to 6kA according EN/IEC 60947-2 standard. The Icn rated short circuit breaking capacity is up to 6000 A according EN/IEC 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.. This product is compliant with EN/IEC 61009-1 and EN/IEC 60947-2 standards. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable.
