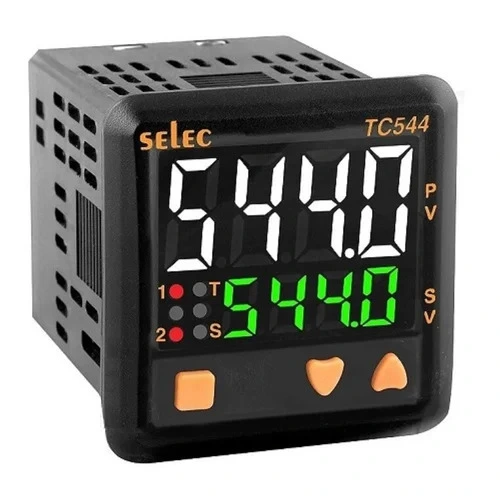

Selec Digital Temperature Controller TC544B| Dual Display, 2 SPST Relay Output
Selec TC544B is a compact digital temperature controller, designed for panel mounting with dimensions of 48 mm × 48 mm. It is extensively utilized in industrial automation and manufacturing to accurately monitor and control temperatures, accommodating inputs from standard sensors such as Thermocouples (J, K, T, R, S) and RTDs (PT100).
Product Features:
Control Modes: Supports both ON/OFF and Auto-tune PID (Proportional-Integral-Derivative) control for highly accurate temperature regulation.
- Displays: Features dual 4-digit, 7-segment LED displays to show the Process Value (PV) and Set Value (SV) simultaneously.
- Outputs: User-selectable 5A Relay or 12V DC SSR (Solid State Relay) drive for primary control, plus an auxiliary 5A Relay output for alarms or timers.
- Functions: Includes heat/cool PID, dwell timer functions, and a dual set-point capability.
- Power Supply: Operates on a wide universal voltage range of 85 to 270V AC/DC.
₹ 1,973.00
₹ 1,973.00
(Tax excluded)
