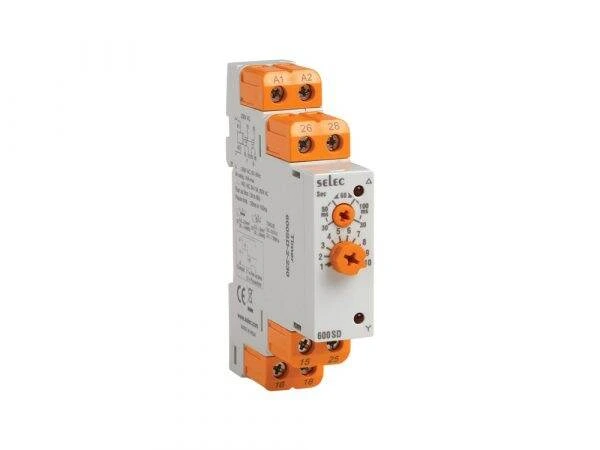

Selec Din Rail Star Delta Timer 600SD-2-230| 230V AC
Product Description
- Star delta, 2 Time ranges
- LED indications : Star relay ON, Delta relay ON
| Operating Modes | Star - Delta |
| Range | Runup Time : 3 to 30 sec, 6 to 60 sec , Pause Time : 50 /100msec (Setting through front knob) |
| Resolution | 0.1 sec |
| Accuracy | Setting: ± 5% Of Full Scale, Repeat: ±0.5% (F.S= Full scale), Pause Time Accuracy: ± 5% ± 5ms |
| Relay Contact | 1 C/O Relay Each For Star & Delta |
| Contact Rating | 1 5A @ 250V AC or 24V DC |
| Supply Voltage | 230V AC |
| Size | 17.5mm |
| Mounting Type | DIN Rail Mount |
| Certification | CE |
₹ 0.00
₹ 0.00
(Tax excluded) - Get Latest Price
