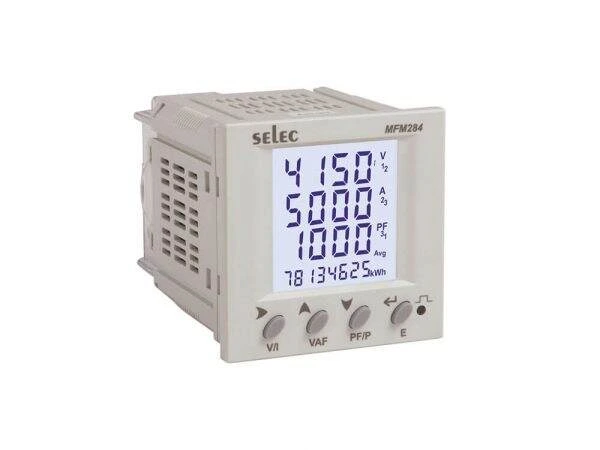

Selec LCD Multifunction Meter Compact MFM284-C-CE | with RS485 communication 72 x 72 mm

The Selec MFM284-C-CE is an ultra-compact, panel-mounted digital AC multifunction meter designed for monitoring power quality and tracking energy parameters in commercial and industrial sub-panels. With dimensions of just 72 x 72 mm space-efficient design.

Product Description:

• Compact Size: Features a 72 x 72 mm square profile with a rear depth of ~67 mm for dense panel installations.
• Display Output: Equipped with a backlit LCD layout utilizing 3 rows of 4 digits for real-time readings and 1 row of 8 digits for integrated energy counters.
• Network Wiring: Compatible with 3-phase 4-wire, 3-phase 3-wire, 2-phase 3-wire, and 1-phase 2-wire electrical networks.
• Embedded Telemetry: Features a physical pulse output alongside built-in RS485 Modbus RTU serial communication for remote data-logging.
• Power Supply: Operates reliably on an auxiliary voltage range from 85V to 270V AC (45/65 Hz).
