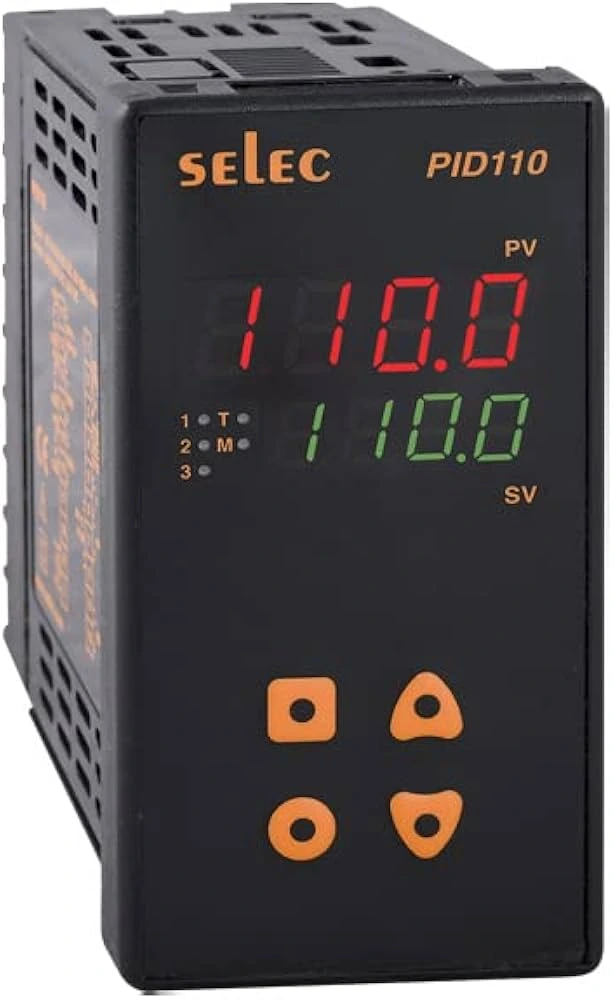

Selec PID110-2-0-04 | PID controller with Universal Input and 3 relay outputs |RS485 communication
The Selec PID 110 is an advanced PID digital temperature controller. It is designed to automatically and precisely maintain a target temperature in industrial machines, ovens, and HVAC systems.
Product Features:
- Control Modes: Uses Auto-Tune PID (Proportional-Integral-Derivative) and ON/OFF control.
- Analog: PID controllers act like a smart driver. Instead of just flooring the gas (ON) and slamming on the brakes (OFF), the PID controller learns how fast the system heats up. It slowly eases off the gas as the temperature gets closer to your target to prevent overshooting.
- Input Types: Features "Universal Input". It connects to:
- Standard Temperature Sensors (Thermocouples like J, K, T, R, S)
- RTD sensors (PT100)
- Industrial electrical signals (0-10V DC, 4-20mA DC).
- Outputs: Equipped with 3 distinct outputs:
- 1 Current output (4 to 20 mA)
- 2 Electromechanical relays (5A) [1]
- Communication: Includes RS485 communication for integration with industrial monitoring systems.
- Power & Size: Runs on a wide power supply range (90 to 270V AC/DC) and fits a standard 96 mm × 48 mm panel cutout.
- Display: Features a bright, dual 4-digit 7-segment LED screen.
