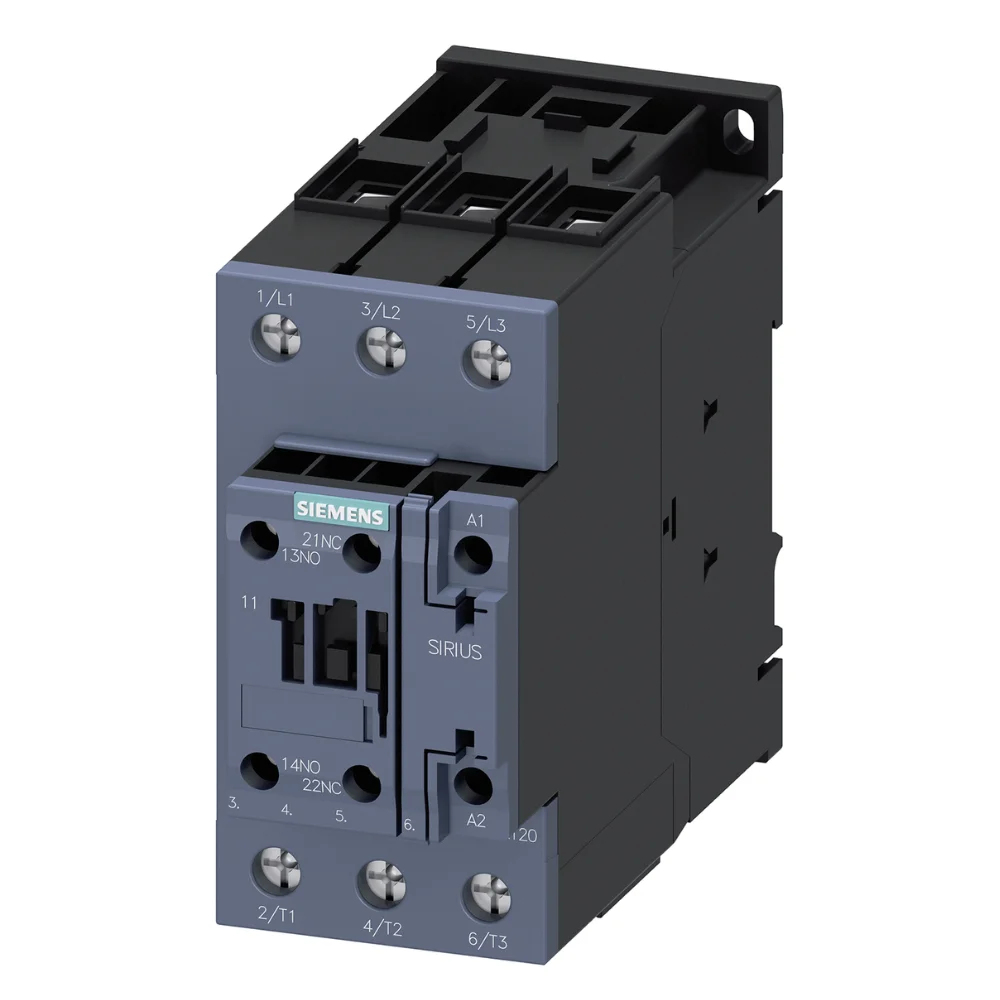

Siemens 3RT 50 Amp 3 Pole 230V AC Power Contactor 3RT2036-1AP00
The Siemens 3RT2036-1AP00 is a 3-pole electrical power contactor manufactured by Siemens. It is part of the SIRIUS 3RT2 modular industrial automation series and is engineered primarily for heavy-duty motor control, power switching, and Direct-On-Line (DOL) engine starting
Product Specification:
- Contactor Type: 3-Pole Power Contactor (3 Normally Open Main Contacts)
- Size: S2 (Frame dimension designation)
- Control Coil Voltage: 230V AC at 50 Hz
- Power Rating (AC-3 / AC-3e): 22 kW at 400V (Suited for roughly 40 HP motors at 460V)
- Operating Current Rating:
- 51 Amps under inductive motor loads (AC-3 / AC-3e at 400V)
- 70 Amps under non-inductive/resistive loads (AC-1 at 400V)
- Integrated Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Terminal Type: Secure screw terminals for the main and control circuit
₹ 0.00
₹ 0.00
(Tax excluded) - Get Latest Price
