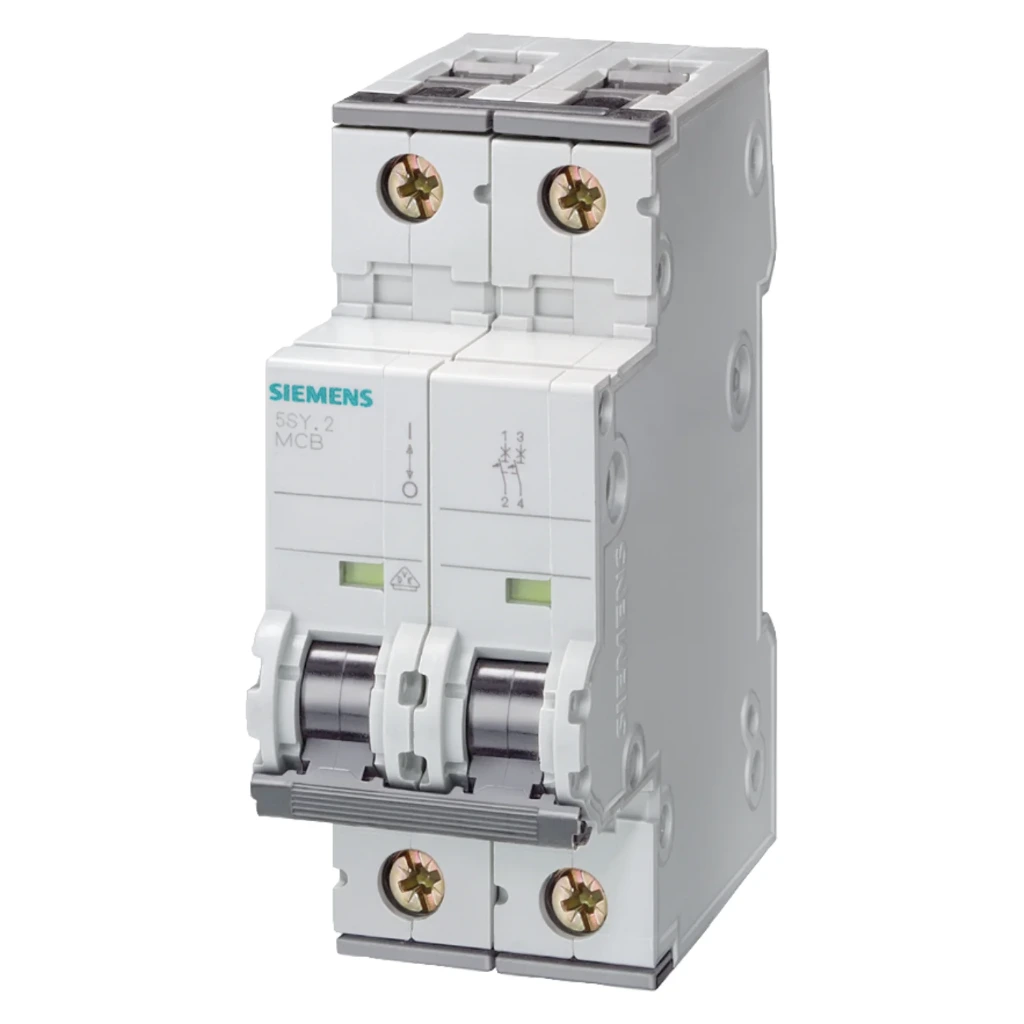

Siemens Betagard 5SY7 6 Amp 2 Pole 15 kA D-Curve 5SY72068CC
The Siemens Betagard 5SY72068CC is a high-performance 6A, double-pole (DP) industrial-grade MCB designed for specialized high-surge applications. Engineered with a robust 15 kA breaking capacity and a fast-acting D-curve profile, it prevents nuisance trips caused by high-inductive starting currents while ensuring unified, dual-line isolation during severe faults.
Product Specifications:
- Brand/Series: Siemens Betagard 5SY7
- Model Code: 5SY72068CC (part of the global SENTRON/Betagard family)
- Current Rating: 6 Ampere
- Number of Poles: 2 Pole / Double Pole (DP)
- Breaking Capacity: 15 kA (15,000 Amps), providing high fault-current interruption for industrial environments.
- Tripping Curve: D-Curve (Trips magnetically at 10 to 14 times the rated current to accommodate severe peak startup currents).
- Rated Voltage: 230/400V AC
₹ 0.00
₹ 0.00
(Tax excluded)
