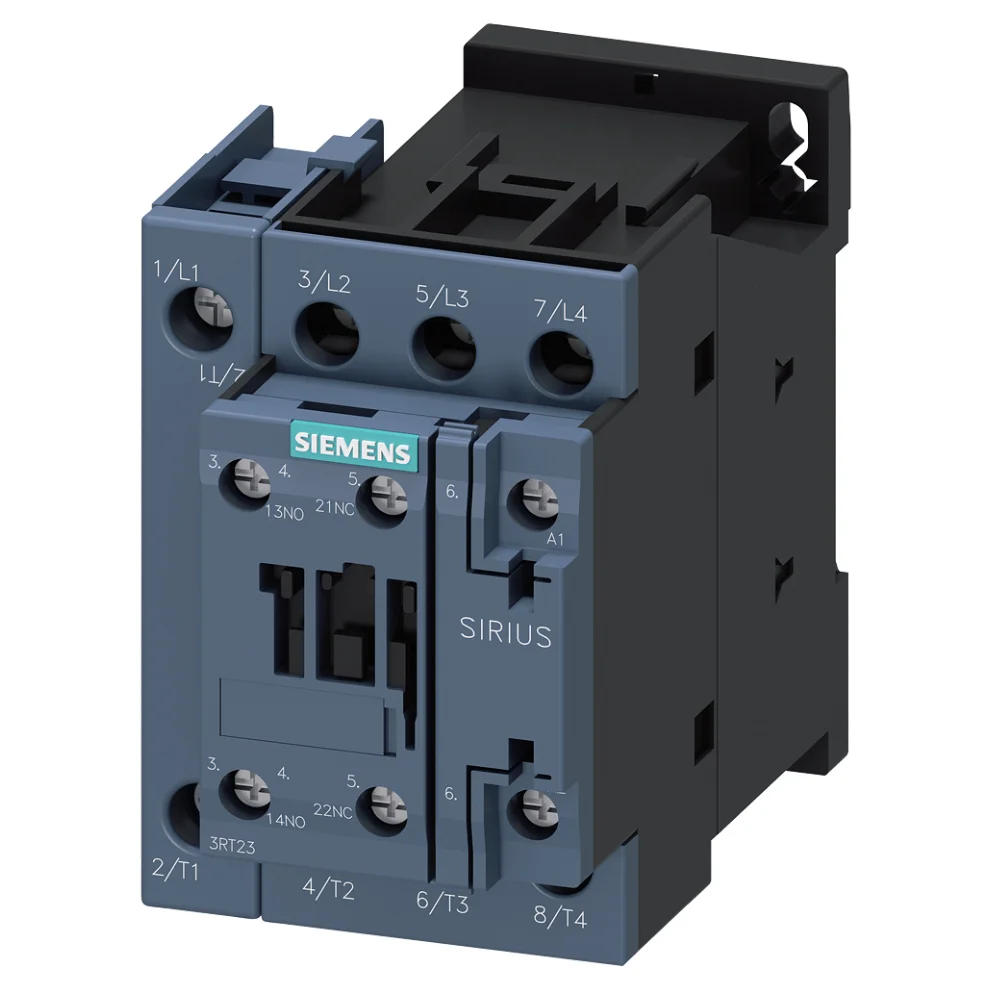

Siemens Sirius 40 Amp 4 pole 230V AC Power Contactor 3RT2326-1AP00
The 3RT2326-1AP00 is a 4-pole power contactor manufactured by Siemens. It belongs to the SIRIUS 3RT23 modular system and is specifically optimized for reliably switching non-inductive or slightly inductive resistive loads, such as industrial heating elements, electric furnaces, and lighting networks.
Product Description:
- Contactor Type: 4-Pole Power Contactor (4 Normally Open Main Contacts)
- Size: S0 (Standard compact footprint)
- Control Coil Voltage: 230V AC at 50 Hz
- Operating Current Rating:
- 40 Amps under resistive/non-inductive loads (AC-1 at 400V / 40°C)
- 15.5 Amps under typical inductive motor loads (AC-3 / AC-4 at 400V)
- Power Rating: 26 kW at 400V (AC-1)
- Integrated Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Terminal Type: Conventional screw terminal
