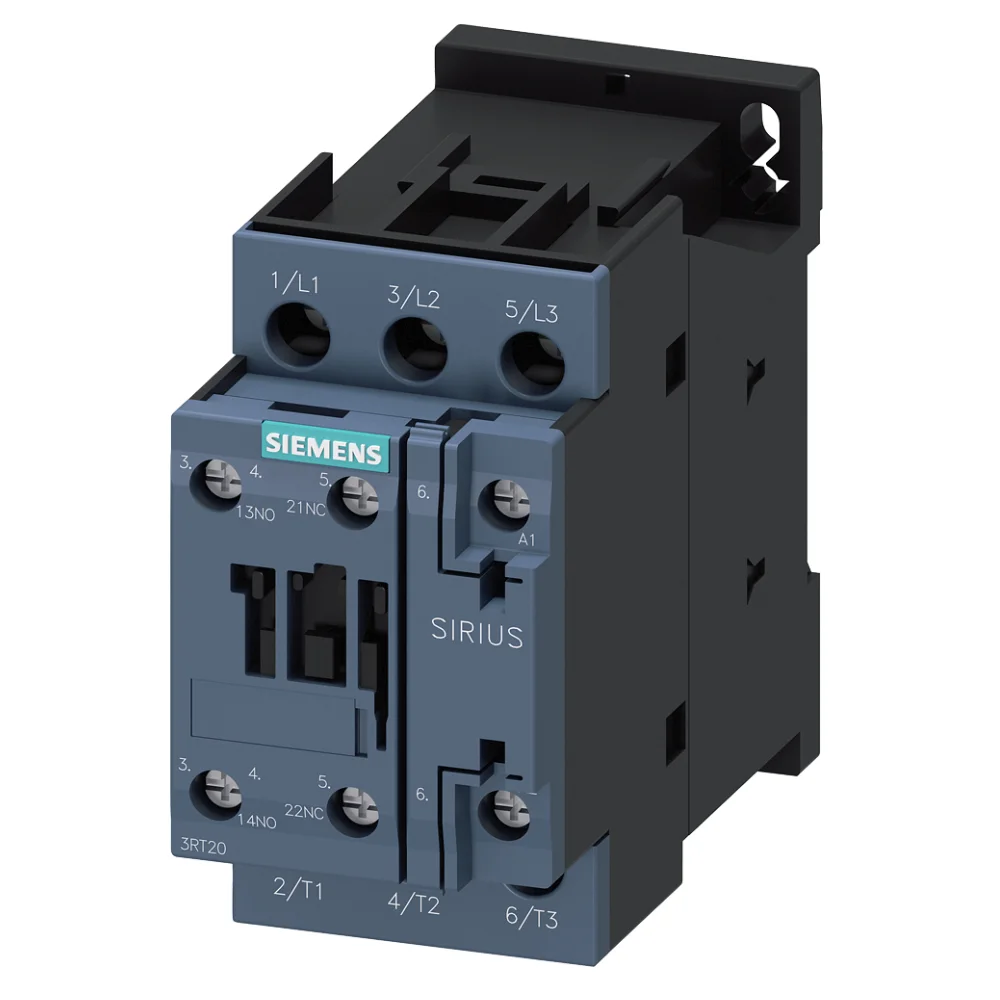

Siemens Sirius 9 Amp 3 pole 24V AC Power Contactor 3RT2023-2BB40
The 3RT2023-2BB40 is a 3-pole electrical power contactor manufactured by Siemens. It is part of the SIRIUS 3RT2 modular industrial automation system and is primarily used for the quick, reliable switching of small to medium electric motors
Product Description:
- Contactor Type: 3-Pole Power Contactor (3 Normally Open Main Contacts) [1, 2]
- Size: S0 (Frame dimension designation) [1, 2]
- Control Coil Voltage: 24V DC
- Power Rating (AC-3 / AC-3e): 4 kW at 400V
- Operating Current Rating:
- 9 Amps under inductive motor loads (AC-3 / AC-3e at 400V)
- 40 Amps under non-inductive/resistive loads (AC-1 at 400V)
- Integrated Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Terminal Type: Vibration-resistant spring-loaded (cage clamp) terminals
₹ 0.00
₹ 0.00
(Tax excluded) - Get Latest Price
